MJ Splitter For Table Saws
Another Revolutionary Product from Micro Jig, Inc.

Another breakthrough invention from Micro Jig, Inc. Microjig Splitter are a low profile splitter that also serves as a mini feather board for the keeper piece behind the saw blade. Simple, exact and extremely effective, cutting results are exceptionally precise and virtually burn free when using the MJ Splitter. It is designed to be used on a Zero Clearance Insert (ZCI) with or without the GRR-Ripper® System. The MJ Splitter features fool proof installation and a revolutionary concept that provides alignment surfaces of different thicknesses. This allows you to fine-tune your application by choosing the best surface to suit your immediate requirements.

• A Low Profile 1/8” and 3/32" Kerf Splitter with Feather Board Effect

• Four alignment surfaces for different effects

• Fool proof installation with Drill Guide

• Use with zero clearance insert without existing splitter opening

• For rip cuts only with 1/8”or 3/32" saw blade

• For use with or without the GRR-Ripper® System



Micro Jig™ Splitter Instructions
The Micro Jig ™ Instructions will require that Adobe Acrobat Reader be installed on your system. Acrobat is a free program that can be downloaded here.
MICRO JIG TABLE SAW SPLITTER
ITEM # DESCRIPTION PRICE BUY

1376

Micro Jig Splitter for 1/8" Kerf Saw Blades

$14.99

1377

Replacement Blade for 1/8" MJ Splitter (2 pack)

$8.99

1378

Micro Jig Splitter for 3/32" Kerf Saw Blades

$19.99

1379

Replacement Blade for 3/32" MJ Splitter (2 pack)

$8.99

1380

Micro Jig Splitter Package for 1/8" and 3/32" Kerf Saw Blades. Package contains 1 each of the 1/8" and 3/32" splitters

$29.99



Microjig Steel Splitter Pro

Microjig Steel Splitter Pro
Microjig Steel Splitter Cutaway Drawing



NEW Steel Splitter Pro! The Steel Splitter Pro is a dual splitter system that not only provides pressure up against the fence, it also pushes the off -fall piece outward to prevent pinching or binding on the back side of your cut. This system is constructed out of stainless steel for super strong durability and is coated with a polymer plastic for smooth operation during cuts.



Micro Jig™ Splitter Instructions

No. Description
Price
Quantity
3149

Microjig Steel Standard Kerf Splitter (1/8") Blue

$24.99

3189

Microjig Steel Thin Kerf Splitter (1/8") Orange

$29.99

3358

Microjig Steel Splitter Combo Package - Includes #3149 and #3189

$49.99


MORE MJ SPLITTER DETAILS

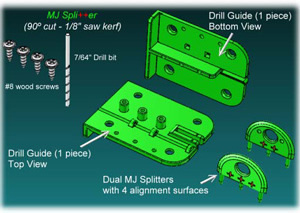

MJ Splitter Contents
Simple and Fool Proof Installation

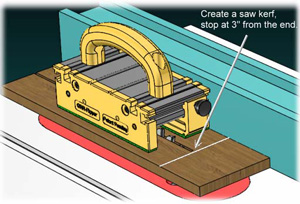

Step 1

Create a saw kerf on a Setup Board with a 1/8" kerf saw blade

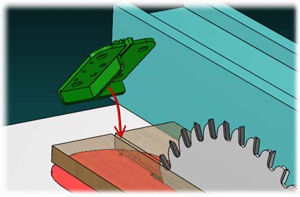

Step 2

Place the Drill Guide with bottom rib into the saw kerf

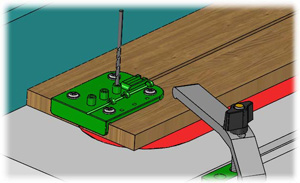

Step 3

Place the Drill Guide on the Setup Board and drill the Installation Holes

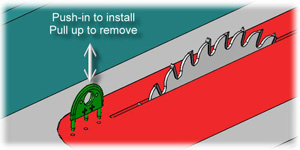

Step 4

Push the MJ Splitter into the Drilled Holes and it is perfectly aligned and ready for use. Pull straight up to remove.

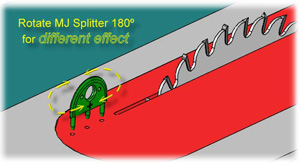

Rotate the MJ Splitter 180 for a different effect, four surfaces to choose from.

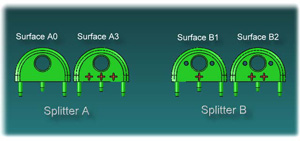

Besides from the concept of perfect aligning drilling procedure, the other break-through concept is choice of tension control for different effects. Each MJ Splitter kit comes with two splitters, A & B with total of four surfaces, each surfaces extends a different distance from the center of the pins. Each additional “+” sign indicates that surface is ±0.003” closer to the fence than the surface that has one less “+” sign. This option also allows you to select a surface that protrudes slightly into the left edge of the keeper piece by thousands of an inch, which generates slight tension – like a mini feather board – behind the saw blade.

Surface with NO + sign

Surface with ONE + sign

Surface with TWO + + sign

Surface with Three + + + sign
