This 10 piece *Brass Template Guide Kit will significantly expand the use of your router. For template controlled operations such as dovetailing, stair routing, hinge butt routing, omni jig template, lock face routing and other general template operations. Template guides can be used directly with any router having a base plate with a 1-3/16"* dia. center hole.

Kit Includes:

• 5/16" Bushing Guide
• 3/8" Bushing Guide
• 7/16" Bushing Guide
• 1/2" Bushing Guide
• 5/8" Bushing Guide
• 3/4" Bushing Guide
• 51/64" O.D Template Guide
• 2 11/16" O.D. Adaptor For Freud And Most Makita Routers
• 5/16" Bushing Guide


*Works with all Black & Decker, DeWalt, Porter Cable^®, & Skill routers. Works with some Elu, & Hitachi routers.

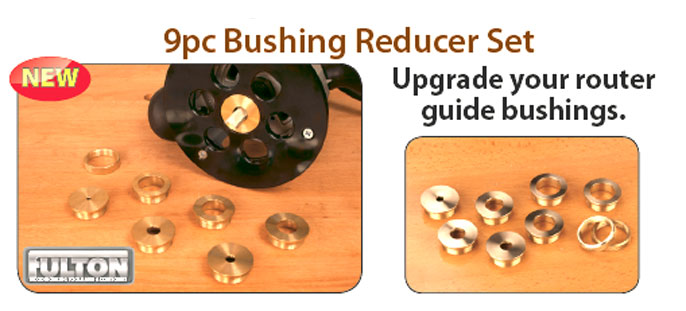

By closing up the opening in the base of your router to match the diameter of smaller bits, you will reduce the risk of getting small pieces of wood between the bit and the plate opening. This lessens the chance of kick back while running your router. The bushings also provide support for smaller workpieces, increase dust collection efficiency and also help reduce tear-out. This convenient set comes with seven different size bushings with openings of: 5/32", 9/32", 13/32", 17/32", 21/32", 25/32", 29/32" and two locking nuts. The bushings will fit router bases or router table inserts with a standard 1-3/8” diameter - recessed opening that accepts template guide bushings. Each bushing will accept a router bit that is at least 1/32” smaller than the bushing size. Example: the 5/32” bushing will accept a 1/8” router bit.

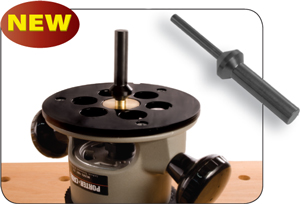

This uniquely designed bushing guide centering pin works with 1/4" or 1/2" shank router collets. Chuck the straight
end into router collet, and raise the bushing guide until it centers on the tapered edges of the centering pin to align the base plate to the collet. This will give you perfect router bit alignment. The center pin is positioning device only and is not to be used on any running machinery.

Permanently replace a plunge router’s height rod with patented Router Raizer™ for tremendous improvements in depth adjustment during table mounted or hand held operations. 1/16” adjustments are easily made from above or below the table without giving up the router’s original turret system or plunge capabilities. Compact design; weighs 8 oz. Manufactured to strict tolerances; parts plated with electroless nickel. Includes adjusting rod, speed wrench, dust cover assembly, instructions and drilling templates (router and base plate not included).

Router Raizer™ 100 fits: Craftsman 27505, 27506,
27510, 27511; DeWalt DW621, DW 625; ELU 3337,
3338, 3339; Freud FT 2000; Hitachi TR12, M12V; Makita
3612-B, 3612-C, 3612-BR; Porter-Cable 693, 6931 base,
7529, 7538, 7539 and Ryobi RE600.

Router Raizer™ 200 fits: BOSCH 1619EVS 3-1/4HP; BOSCH 1166 PlungeBase; Fein RT1800 3-1/4HP and Makita RF1101 Plunge Base.

This handy set-up tool is designed to fit both 1/4" and 1/2" router collets, and center the base plate to the collet. It’s vital for inlay work, pattern router, and using any precision fence system. It will also indicate the exact center of any bit cut, which is important when locating grooves and dadoes. The centering /alignment pin can be used to check run-out on drill press, mill and lathe chucks.

Router Technologies is proud to introduce the Xtreme Xtension. This new extension works in any 1/2" router collet, allowing installation or removal of router bits from above your router table without the cumbersome wrenches and locking of the spindle usually required. The additional 11/4" length and 1" deep bore provide complete support of all 1/2" and 1/4" shank bits used with any thickness table or insert plate.

1/2" to 1/4" Router Collet Reducer

These router collet reducers are a universal split-type steel bushing that allow you to reduce your 1/2” collet down to a 1/4” collet. The collets are 1-1/4” in overall length.

This simple, inexpensive tray stores and organizes up to 100 bits, with 50 holes each for 1/2" & 1/4" shanks. (1/4" holes accept 8mm shanks as well.) Stiff foam slab is 12-1/4" square x 1-1/2" thick. Holes are on 1" centers.

(Router Bits Not Included)

This aluminum Router Depth Gauge makes router set up fast, easy and simple. You simply set the Router Bit Depth
Gauge across your cutter (router bit) and adjust the router bit to the required setting. The aluminum Router Depth Gauge is clearly marked in inches. The Router Depth Gauge is designed for setting cutter depths from 1/8” to 1” in 1/16” increments..

Non-Slip Router Mat

This premium quality neoprene rubber work pad is indispensable for routing, sanding, protecting tools, lining drawers, dampening vibration, and more! A special formulated non-slip router mat material holds your work piece firmly in place. Pad measures 24" wide x 36" long, 1/8" thick and is tan in color.

Our Brass Set Up Bar package is manufactured in 4" lengths and of high quality long lasting brass.

The set includes these sizes:

• 1/8"
• 3/16"
• 1/4"
• 3/8"
• 1/2"
