Products





Toggle Clamps

Toggle Clamps are ideal for use in a variety of situations, including jigs, bench holdfasts, and for specific production situations, where quick and easy repeatability is vital. The ends of each clamp have an adjustable rubber tip to control pressure sensitivity. They are easily mounted with four fasteners.

Small Toggle Clamp
200 lb Holding Capacity

Small Horizontal Handle Toggle Clamp 200 lb Capacity Image



1/4"  Spindle Horizontal Handle Quick Release Toggle Clamps are ideal for use in a variety of situations, including jigs, bench holdfasts, and for specific production situations, where quick and easy repeatability is vital. The ends of each clamp have an adjustable rubber tip to control pressure sensitivity. They are easily mounted with four fasteners. (Not Included)

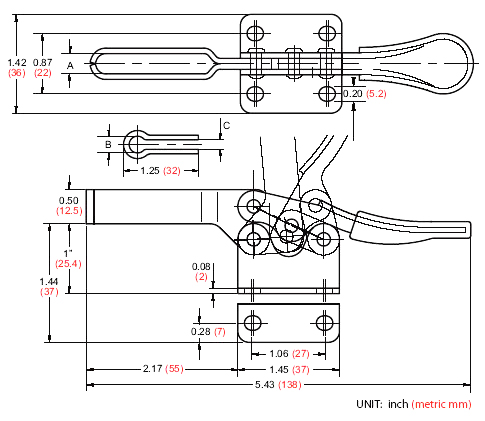

Small Horizontal Handle Toggle Clamp 200 lb Capacity Drawing

No. Description
Price
Quantity

1147

1/4"  Spindle Horizontal Handle Quick Release Toggle Clamp

$9.99
Product Divider Image

Large Toggle Clamp
500 lb Holding Capacity



Large Toggle Clamp  500 lb Holding Capacity
Quick Set Large Foot mounted on Large Toggle Clamp
For Large Toggle Clamp #1148
(Toggle Clamp Not Included)



5/16"  Spindle Horizontal Handle Quick Release Toggle Clamps are ideal for use in a variety of situations, including jigs, bench holdfasts, and for specific production situations, where quick and easy repeatability is vital. The ends of each clamp have an adjustable rubber tip to control pressure sensitivity. They are easily mounted with four fasteners. (Not Included)

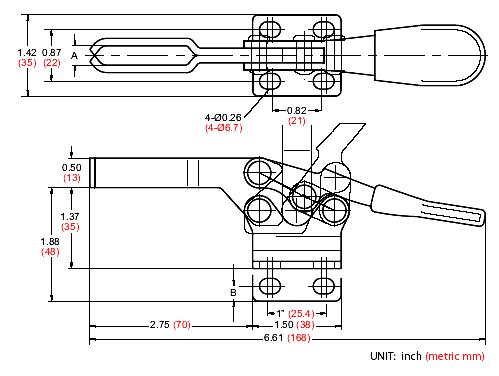

Large Horizontal Handle Toggle Clamp 500 lb Capacity Drawing

No. Description
Price
Quantity

1148

5/16"  Spindle Horizontal Handle Quick Release Toggle Clamp

$10.99

3340

Quick Set Hold Down Large Hard Rubber Foot
(Toggle Clamp Not Included)

$2.99

Product Divider Image

Push / Pull Toggle Clamp
400 lb Holding Capacity

Push Pull Toggle Clamp



5/16" Piston Push / Pull Toggle Clamp can be used to pull or push over a travel range of 1- 1/4". Quick Release Toggle Clamps are ideal for use in a variety of situations, including jigs, bench holdfasts, and for specific production situations, where quick and easy repeatability is vital. The ends of each clamp have an adjustable rubber tip to control pressure sensitivity. They are easily mounted with four fasteners.
(Not Included)

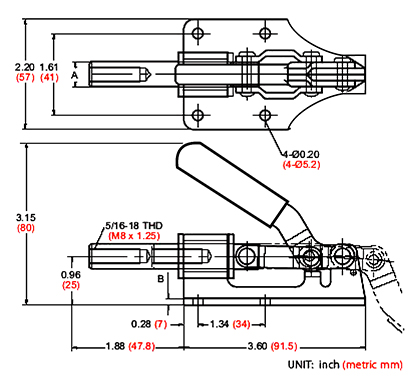

Push Pull Toggle Clamp Drawing

No. Description
Price
Quantity

1149

5/16" Piston Push / Pull Toggle Clamps

$11.99
Product Divider Image

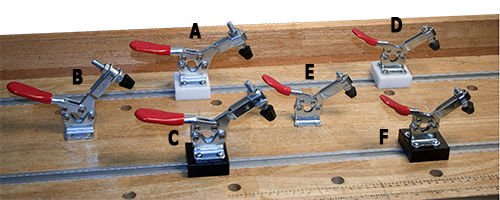

Mounted Toggle Clamps


Mounted Toggle Clamps



These compact clamps can be installed on workbenches, tool fixtures, or moveable bases so they can be quickly set and engaged to hold your work. Mounted toggles (A & D) work with our HD T-track. Mounted toggles (C & F) work with our mini T-track . Unmounted toggles (B & E) can be mounted to any jig with screws (not included). All toggles come with adjustable rubber pressure tips.
No. Description
Price
Quantity
1151
(A) large mounted toggle clamp with 3/8”x16 bolt (white)
$14.99
1148
(B) B large toggle clamp
$10.99
1154
(C) large mounted toggle clamp with 1/4”x20 bolt (black) .
$14.99
1150
(D) small mounted toggle clamp with 3/8”x16 bolt (white)
$12.99
1147
(E) small toggle clamp
$9.99
1153
(F ) small mounted toggle clamp with 1/4”x20 bolt (black)
$12.99
Product Divider Image

Mounted Toggle Clamps

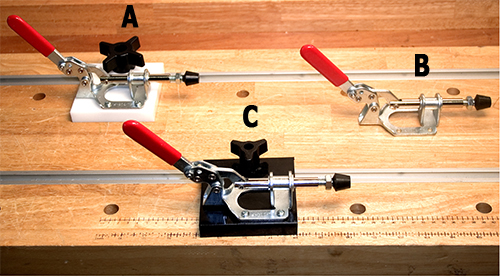

Mounted Push / Pull Toggle Clamps



These Push Toggle Clamps are for keeping stock tight against fences for drilling or cutting. Constructed of high grade steel with easy grip handles. The mounting blocks offer great holding power when attached to their respective track. Mounted toggle (A) works with our HD T-track . Mounted toggle (B) works with our mini T-track. Unmounted toggle (C) can be mounted to any jig or fixture with wood screws (not included). Each toggle comes with adjustable rubber pressure tips.

No. Description
Price
Quantity
1152
(A) large mounted push toggle clamp with 3/8”x16 bolt (white)
$14.99
1149
(B) B large push toggle clamp
$11.99
1155
(C) large mounted push toggle clamp with 1/4”x20 bolt (black) .
$14.99
Product Divider Image

Toggle Clamp Foot

Toggle Clamp Foot



This oversized clamping foot provides more stable clamping pressure and does not mar on soft woods. Swivel-action foot is perfect for clamping angled stock, and measures 1-5/8" in diameter. The clamp foot will fi t most toggle clamps. Toggle clamp not included.



No. Description
Price
Quantity

1160

2" long bolt clamp foot 5/16" x 18 tpi

$4.99

1161

6" long bolt clamp foot 5/16" x 18 tpi

$5.99

1394
2" long bolt clamp foot 1/4" x 20 tpi
$4.99

1395
6" long bolt clamp foot with 1/4" x 20 tpi
$5.99

1396
2" long bolt clamp foot for push toggles 8mm
$4.99

Product Divider Image

Toggle Hold Down For T-Track

Togle Hold Down for T Track



Add safety to your T-Track fence system with the addition of this toggle hold down. Finger tightened nuts allow you to position the 35 lb clamp anywhere along the track. Large 2" vertical adjustment of hold down foot.

  • # 2987 Fits heavy duty T-Track accepting 9/16" wide fasteners (3/8" bolt size).
  • # 2988 Fits mini T-Track accepting 7/16" wide fasteners (1/4" bolt size).
No. Description
Price
Quantity
2987
Toggle Hold Down For 3/8" T-Track
$14.99

2988
Toggle Hold Down For 1/4" T-Track

$14.99
